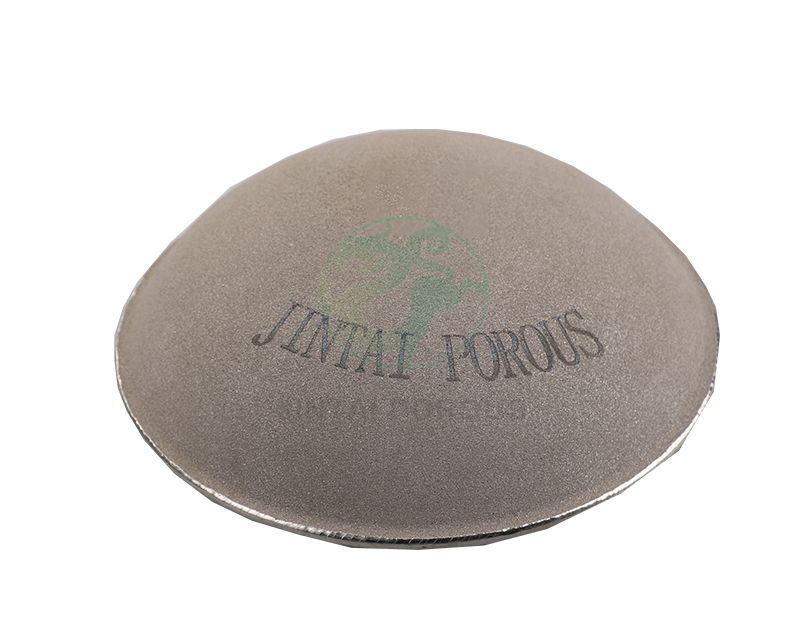

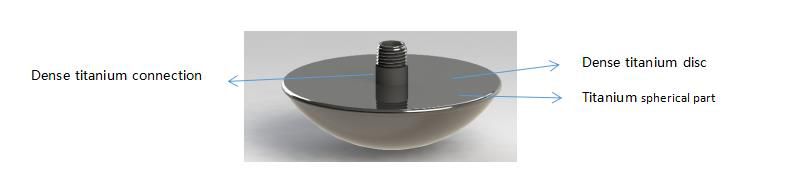

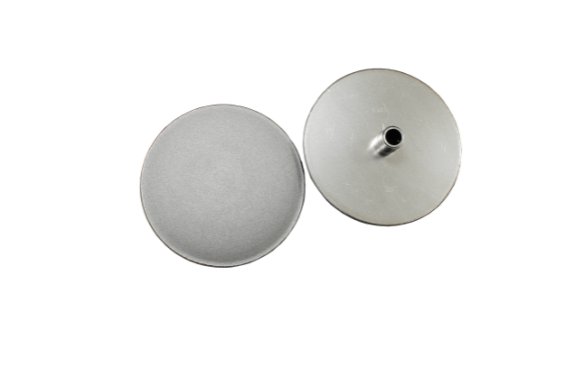

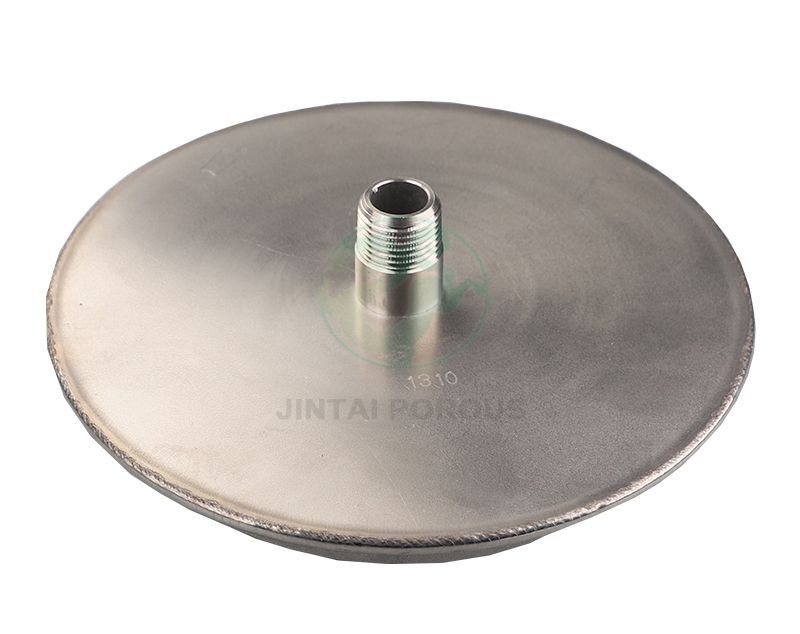

Spherical crown shape spargers are devices typically used in various industrial applications, particularly in aeration, liquid mixing, or gas injection processes. The sparger has a spherical crown shape, which helps to efficiently disperse gas or air into a liquid, often improving the mixing process in chemical reactors, wastewater treatment plants, fermentation tanks, or other liquid processing systems. The product is welded by titanium spherical part, dense titanium disc and dense titanium connection. The spherical part is sintered with high-purity titanium powder.
All welded connection, no air leakage;
The pore size is uniform and small, the distribution range is narrow, and the bubbles generated are small;
High aeration rate, low aeration resistance, high aeration;
High temperature, corrosion resistance, excellent oxidation resistance;
No particles fall off and will not cause secondary pollution to the original liquid;
The weight is lighter and the installation is convenient.

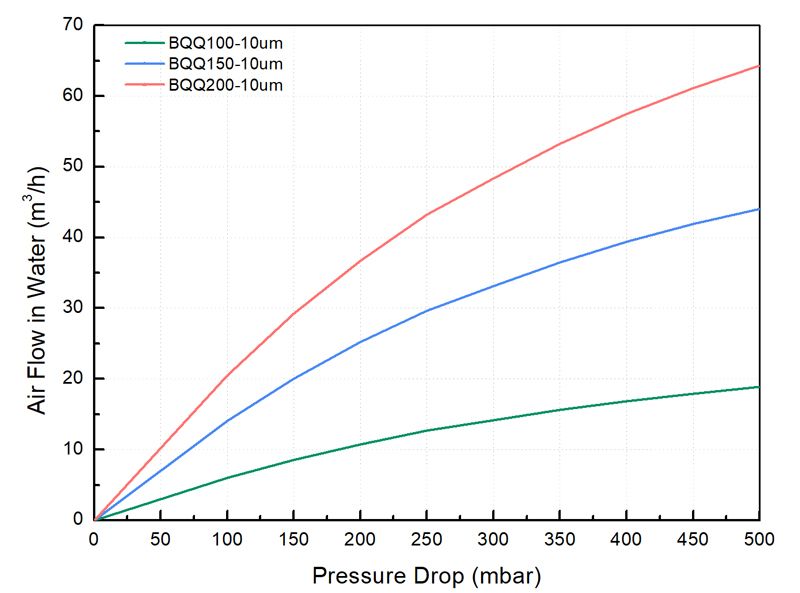

Aeration flow diagram of spherical crown shape titanium sparger (test in water)
| No. | Model | Air outlet diameter (mm) | Height (mm) | Connection | AerationArea(㎡) (water depth above 4 meters) | O2 utilizationRatio |
| 1 | JTBQQ-100 | ф100 | 57 | R 1/2'' | 0.5 | 32.22-45.33% |
| 2 | JTBQQ-150 | ф150 | 76 | R 1/2'' | 0.8 | 32.22-45.33% |
| 3 | JTBQQ-180 | ф180 | 82 | R 1/2'' | 1 | 32.22-45.33% |
