The porous metal cups of Jintai Company can be customized in various specifications according to customer requirements, and the parameters such as length, diameter, thickness, material and grade can be changed to meet customer's process requirements. In addition, the porous metal cup can be attached to other metal or non-metal parts.
| Material selection | Titanium Stainless steel: 316L, 304L, 310S, 321, 904L Hastelloy C22 C276 X Inconel 600 Monel 400 Nickel Other materials required by the customer |
| Filtration Grade | 0.1um 0.3um 0.5um 1um 3um 5um 10um 15um 20um 30um 50um 80um 100um Other grade required by the customer |
| Data & Specifications | OD: minimum 4mm ID: The smallest can be 2.5mm Length: The minimum can be 2mm Thickness: The thinnest can be 1mm, the thickest can be 6mm Other specifications and sizes required by customers |

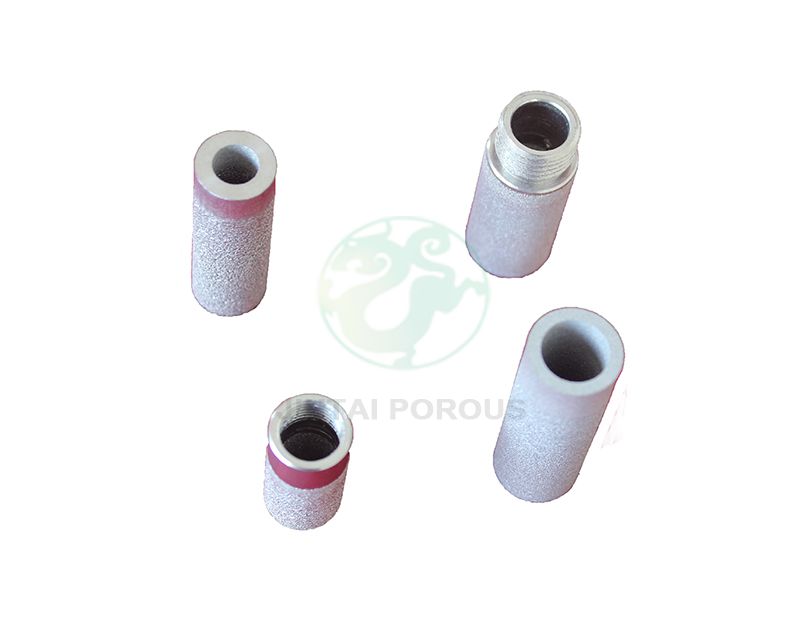

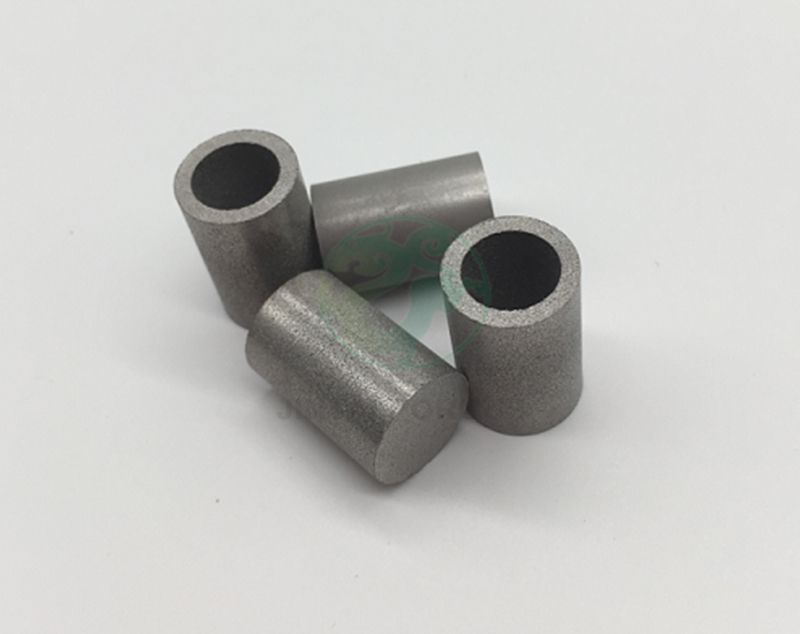

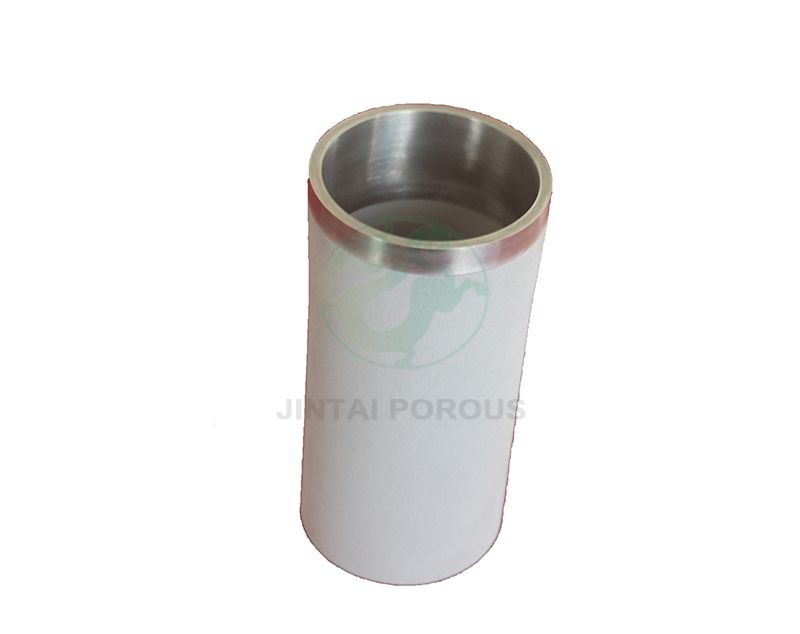

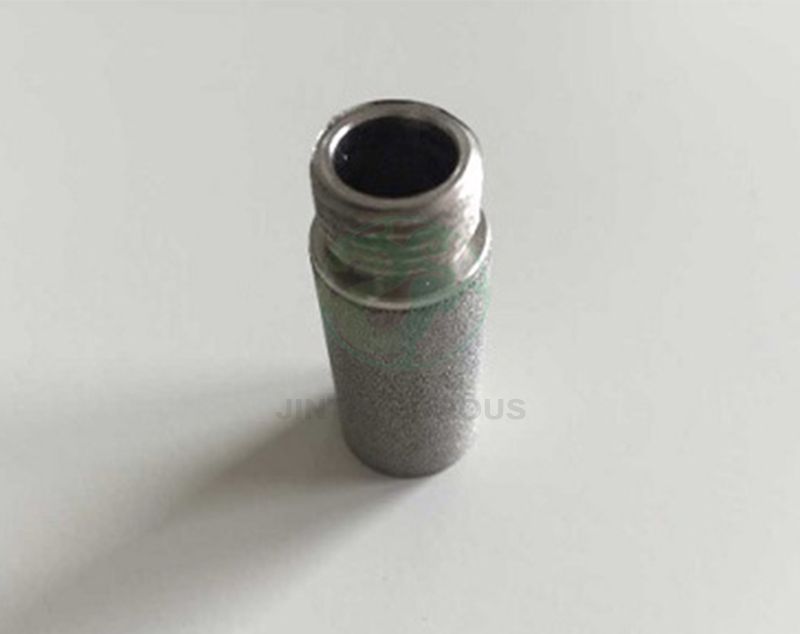

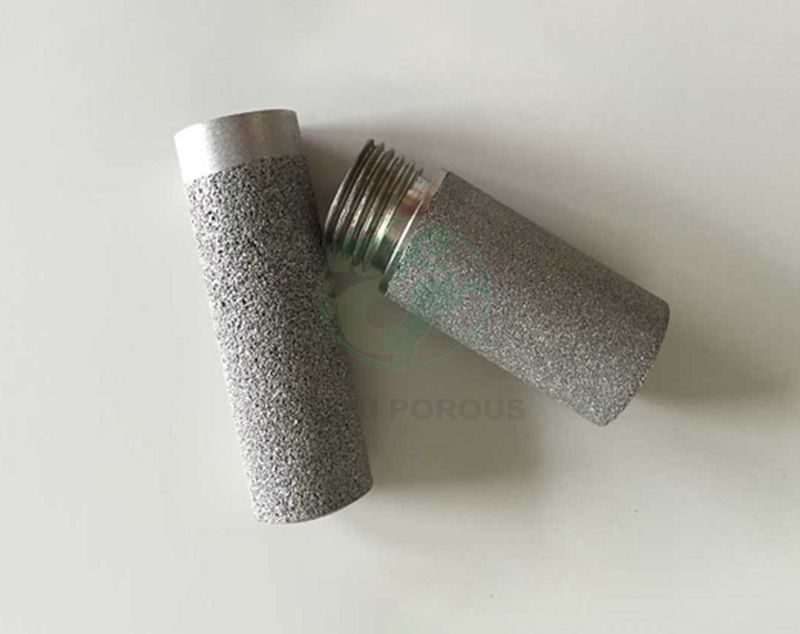

Porous metal cups are a type of metal product that is widely used in various industries such as filtration, chemical processing, and aerospace due to their high strength, high temperature resistance, and excellent filtration properties. As a manufacturer, we produce porous metal cups using a sintering process, which involves compacting metal powder into the desired shape and then sintering it at high temperatures.
During the sintering process, the metal powder particles are bonded together to form a solid structure with interconnected pores of controlled size and shape. The resulting porous metal cups have a high strength-to-weight ratio and can withstand high temperatures and harsh chemical environments.
Our porous metal cups can be customized to meet specific customer requirements, including pore size, pore distribution, and cup thickness. We can also produce porous metal cups with complex geometries, including cylindrical, conical, and flat shapes, to meet a wide range of applications.
To ensure the quality of our products, we perform rigorous testing on our porous metal cups, including pore size distribution analysis, compressive strength testing, and corrosion resistance testing. We also provide technical support and advice to our customers to help them optimize the performance of our porous metal cups in their specific applications.
As a manufacturer, we take pride in producing high-quality porous metal cups that meet the demanding requirements of our customers and contribute to their success. Our commitment to quality, customer service, and technical support sets us apart as a leader in the porous metal industry.
The Jintai has been committed to the development of metal porous materials and related technologies and applications. As early as more than 20 years ago, Jintai began to focus on the development and production of metal porous powder sintered filter elements. We has 15 invention patents and utility model patents. It has been a high-tech enterprise and has passed ISO9001 quality management system certification. After more than 20 years of technical accumulation, Jintai can now provide customers with a variety of product materials and specifications to meet customer needs.
